These Are The True Specs Of PS4

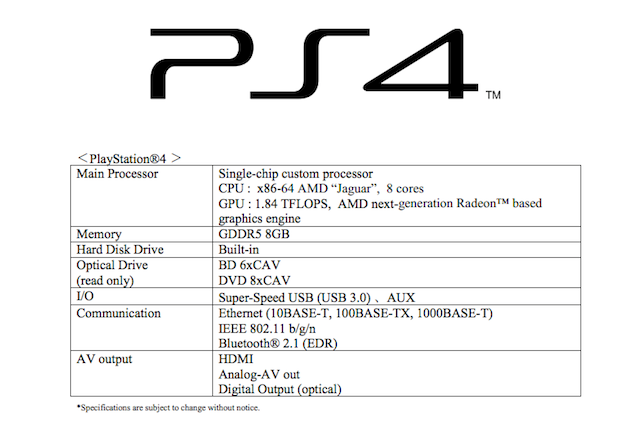

Forget the rumors, we now have some official specs to comb through. See what really’s under the hood of PlayStation 4, at least some of it. By the way, we do not know yet what the actual hood looks like, although we believe Sony simply wanted to save some juice for E3. Specs inside.



DualShock 4

External Dimensions Approx. 162mm x 52mm x 98mm (width x height x depth)
(tentative, excludes largest projection)
Weight Approx. 210g (tentative)
Keys / Switches PS button, SHARE button, OPTIONS button,
Directional buttons (Up/Down/Left/Right),
Action buttons (Triangle, Circle, Cross, Square),
R1/L1/R2/L2 button, Left stick / L3 button, Right stick / R3
button, Pad Button
Touch Pad 2 Point Touch Pad, Click Mechanism, Capacitive Type
Motion Sensor Six-axis motion sensing system (three-axis gyroscope, threeaxis accelerometer)
Other Features Light Bar, Vibration, Built-in Mono Speaker
Ports USB (Micro B), Extention Port, Stereo Headset Jack
Wireless Communication Bluetooth® Ver2.1+EDR
Battery Type Built-in Lithium-ion Rechargeable Battery
Voltage DC3.7V (tentative)
Capacity 1000mAh (tentative)

PlayStation 4 Eye

External Dimension Approx. 186mm x 27mm x 27mm (width x height x depth)
(tentative)
Weight Approx. 183g (tentative)
Video Pixel (Maximum) 1280 x 800 pixel x 2
Video Frame Rate 1280×800 pixel @ 60fps
640×400 pixel @ 120fps
320×192 pixel @ 240fps
Video Format RAW, YUV (uncompressed)
Lens Dual Lenses, F value/F2.0 fixed focus
Capture Range 30cm～∞
Field-of-View 85°
Microphone 4 Channel Microphone Array
Connection Type PS4 dedicated connector (AUX connector)
Cable Length Approx. 2m (tentative)
